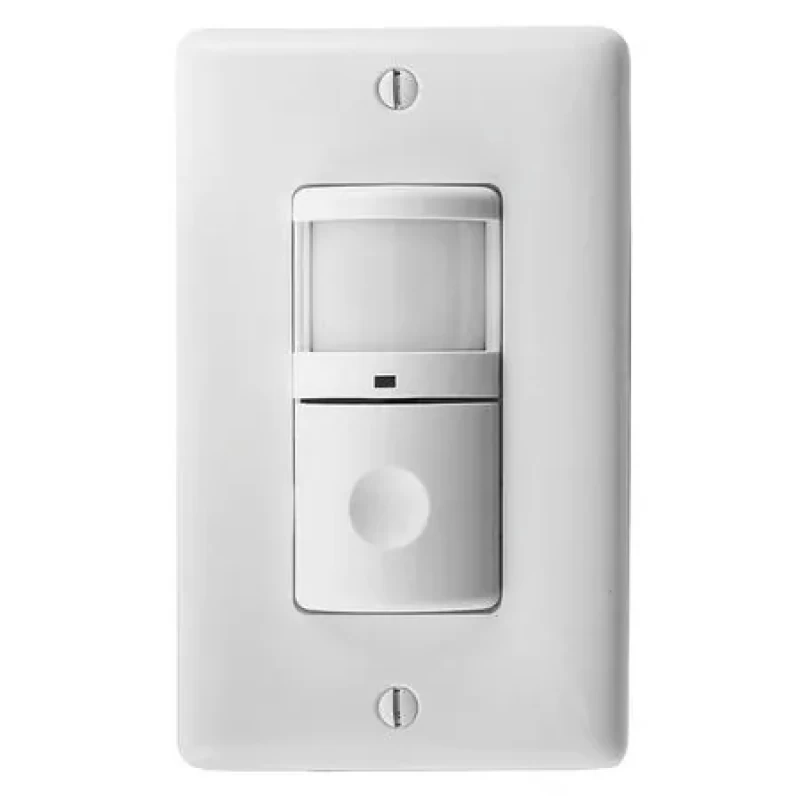

Occ/Vac Sensor, PIR, 1200 sq ft, White

Hubbell Part No : WS2000W

Item - Motion Sensing and Dimming: Motion Sensor

Communication Method - Motion Sensing and Dimming: Hard Wired

Sensing Technology: Passive Infrared

Motion Sensor, Item - Motion Sensing and Dimming Motion Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Wall Switch Box, Coverage at Suggested Mounting Height 1,200 sq ft, Operating Voltage - Motion Sensing and Dimming 120V AC, 277V AC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 20 sec to 30 min, Time Delay Adjustment Method - Motion Sensor Manual

  • Communication Method - Motion Sensing and Dimming: Hard Wired
  • Sensing Technology: Passive Infrared
  • Installation Location - Motion Sensor: Wall Switch Box
  • Coverage at Suggested Mounting Height: 1,200 sq ft
  • Operating Voltage - Motion Sensing and Dimming: 120V AC, 277V AC
  • Color - Motion Sensing and Dimming: White
  • Time Delay Adjustment Method - Motion Sensor: Manual
  • Time Delay - Motion Sensor: 20 sec to 30 min
  • Item: Occupancy/Vacancy Sensor
  • Timer Range: 20 sec. to 30 min.
  • Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
  • Watts @ 120V: 1000
  • Watts @ 277V: 1800
  • Voltage: 120/277VAC
  • Sensor Type: Passive Infrared
  • Time Delay: Manual
  • Suggested Mounting Height - Motion Sensor: 3 ft 6 in to 4 ft 6 in
  • Max. Capacity @ 277VAC: 1800W (Fluorescent, Incandescent, LED)
  • Standards: cUL Listed
  • Coverage Angle - Motion Sensor: 180 Degrees
  • Viewing Angle: 180 Degrees
  • Coverage: 1200 sq. ft.
  • For Use With: Incandescent, LED and Fluorescent Lighting Loads
  • Description/Special Features: 3-Way Capable, Selectable Manual/Auto-On Operation, Tamper Resistant Lens
  • Includes: Nylon Wall Plate, Photocell
  • Color: White
  • Lighting Technology: Fluorescent, Incandescent, LED
