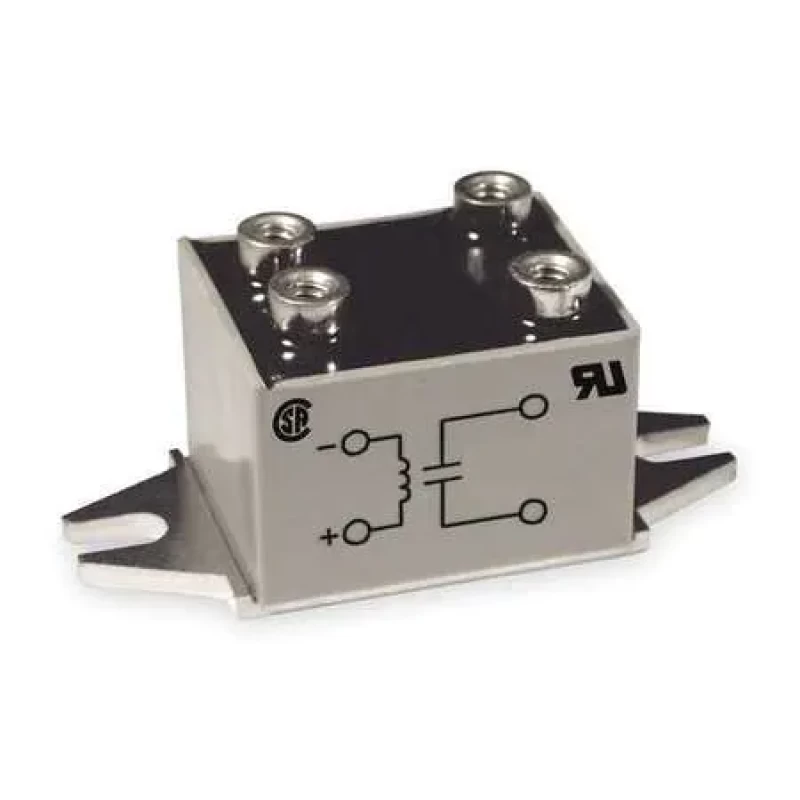

Miniature Solid State Relay, 3-30VDC, 25A

Dayton Part No : 1EGT7

Input or Control Voltage: 3 to 30V DC
Output or Controlled Voltage Range: 24 to 280V AC
Max. Output Amps w/Heat Sink: 25
Heat Sink: Not Included
Switch Type: Triac
Contact Form - Relay: SPST-NO
Relay Turns On At: Zero Crossing

Miniature Solid State Relay, Input or Control Voltage 3 to 30V DC, Output or Controlled Voltage Range 24 to 280V AC, Max. Output Amps w/Heat Sink 25, Heat Sink Not Included, Switch Type Triac, Contact Form - Relay SPST-NO, Relay Turns On At Zero Crossing, Input Power Consumption (Burden) 0.3W, Mounting - Relay Surface, Finger Safe No


  • Input or Control Voltage: 3 to 30V DC
  • Output or Controlled Voltage Range: 24 to 280V AC
  • Max. Output Amps w/Heat Sink: 25
  • Heat Sink: Not Included
  • Switch Type: Triac
  • Contact Form - Relay: SPST-NO
  • Relay Turns On At: Zero Crossing
  • Input Power Consumption (Burden): 0.3W
  • Mounting - Relay: Surface
  • Input Voltage: 3 to 30VDC
  • Voltage Output: 24 to 280VAC
  • Item: Miniature Solid State Relay
  • Standards: E195424
  • Body Height - Relay: 0.9 in
  • Input or Control Voltage Range: 3 to 30VDC
