Light-Curtain-39-4-ft-19-7-H-16-Beams-E3ZM-R81 2M

Light Curtain, 39.4 ft., 19.7"H, 16 Beams

Omron Part No : E3ZM-R81 2M

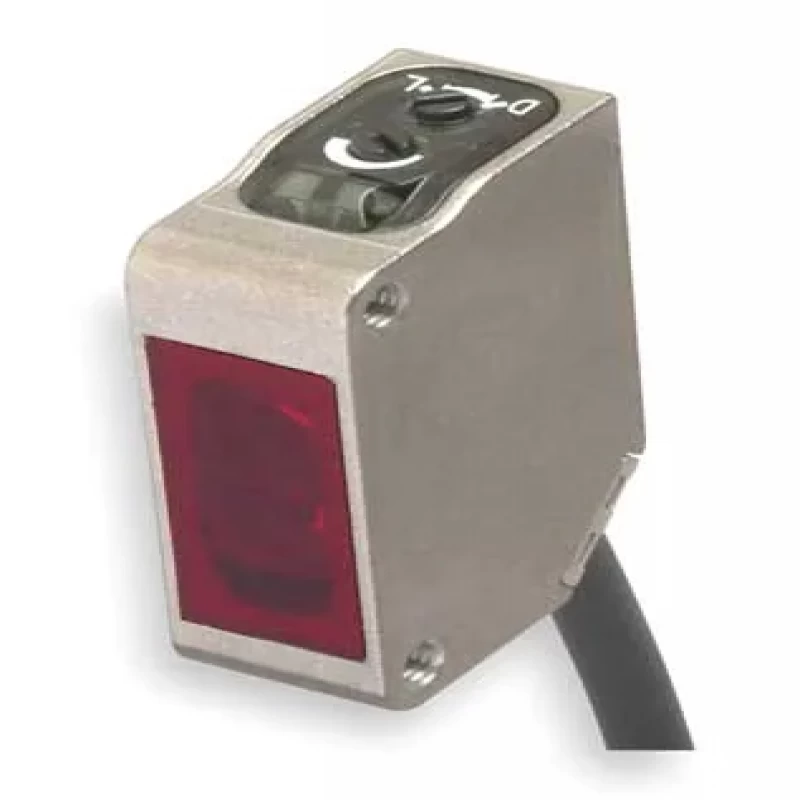

Item: Photoelectric Sensor

IP Rating: 67, 69K

Circuit Type: PNP

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Retroreflective, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 500 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

Item: Photoelectric Sensor
IP Rating: 67, 69K
Circuit Type: PNP
Sensing Method - Rectangular Photoelectric Sensor: Retroreflective
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.43"
Depth: 0.83"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 500 mm
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Height - Rectangular Photoelectric Sensor: 32 mm
Electrical Connection: 2m cable
Response Time: 1.0 msec
Power Requirement: 10 to 30VDC
Operating Temp. Range: -25 Degrees to 55 Degrees C
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Operation Mode: Selectable Light On/Dark On
Length: 1.26"
Shape: Rectangular
Sensing Method: Retroreflective
Width - Rectangular Photoelectric Sensor: 11 mm
Min. Object Size: 75mm dia Opaque
Depth - Rectangular Photoelectric Sensor: 21 mm
Footnotes: 4
Max. Sensing Distance: 500mm
Light Source: Red LED
Body Material: 316L Stainless Steel
Standards: CE Approval

Light Curtain, 39.4 ft., 19.7"H, 16 Beams
